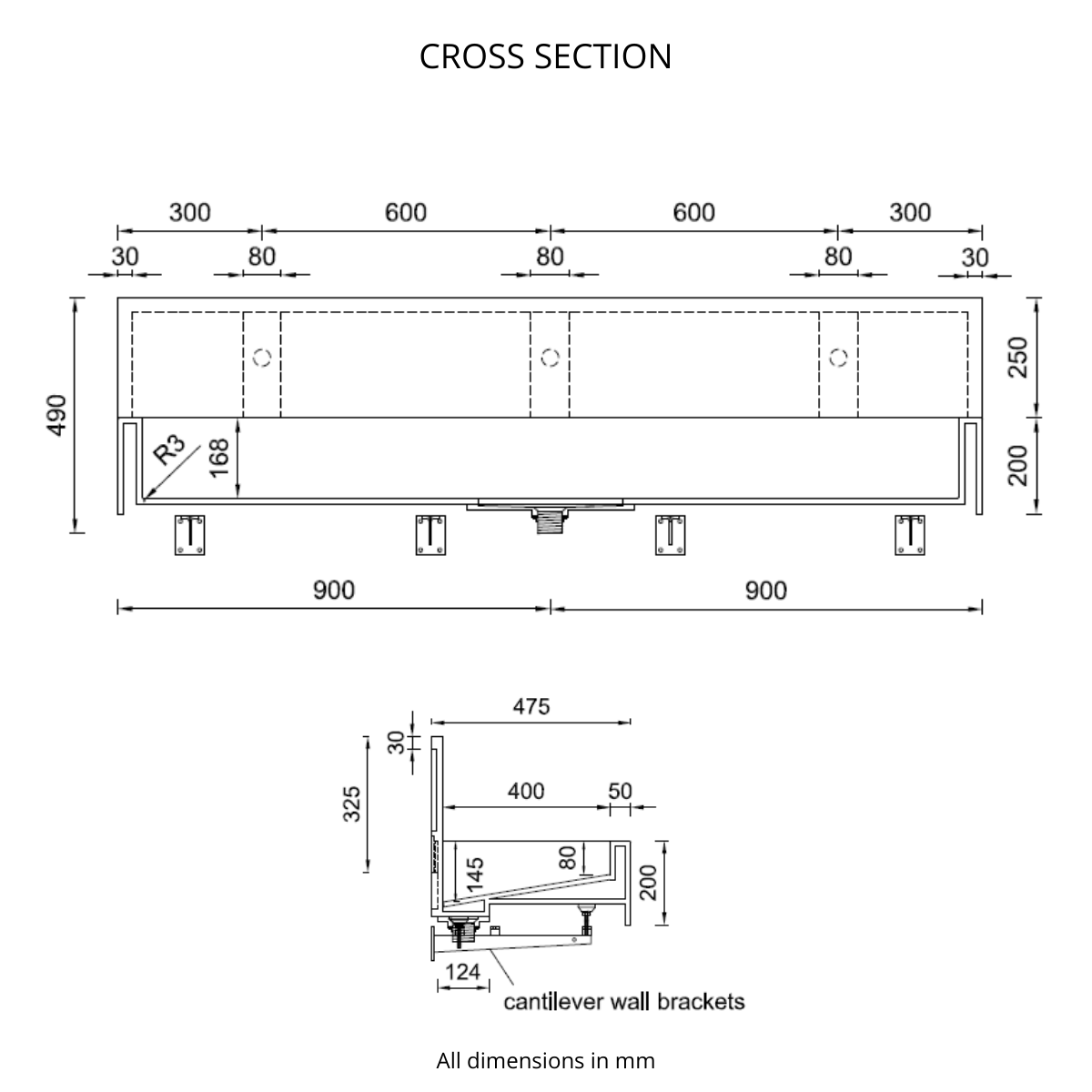

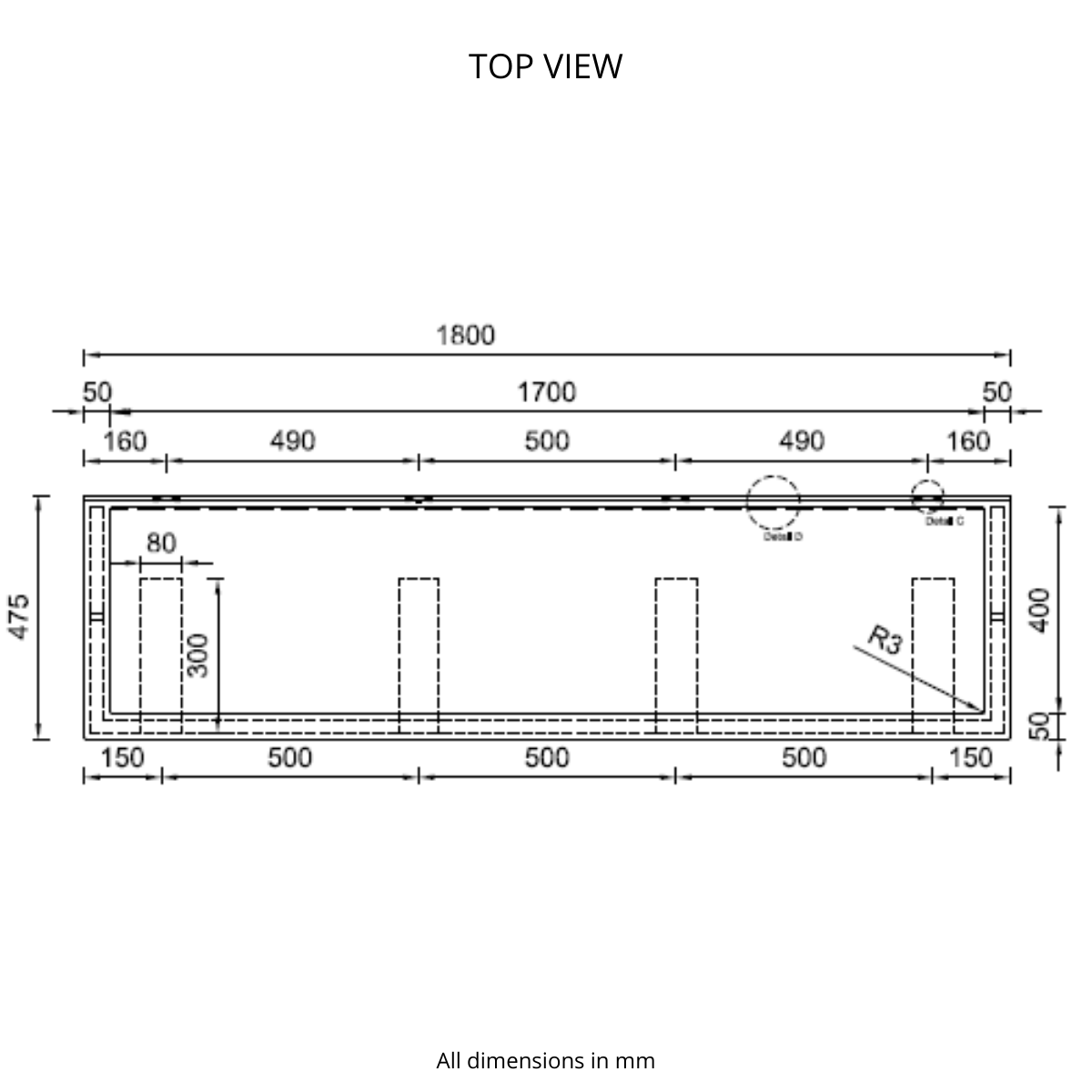

Canva 322 Washplane Drainage Line Detail Canva 3223 Elevation Canva 3223 Plan View Canva 3224 Section View

Priced From: $3,301.90*

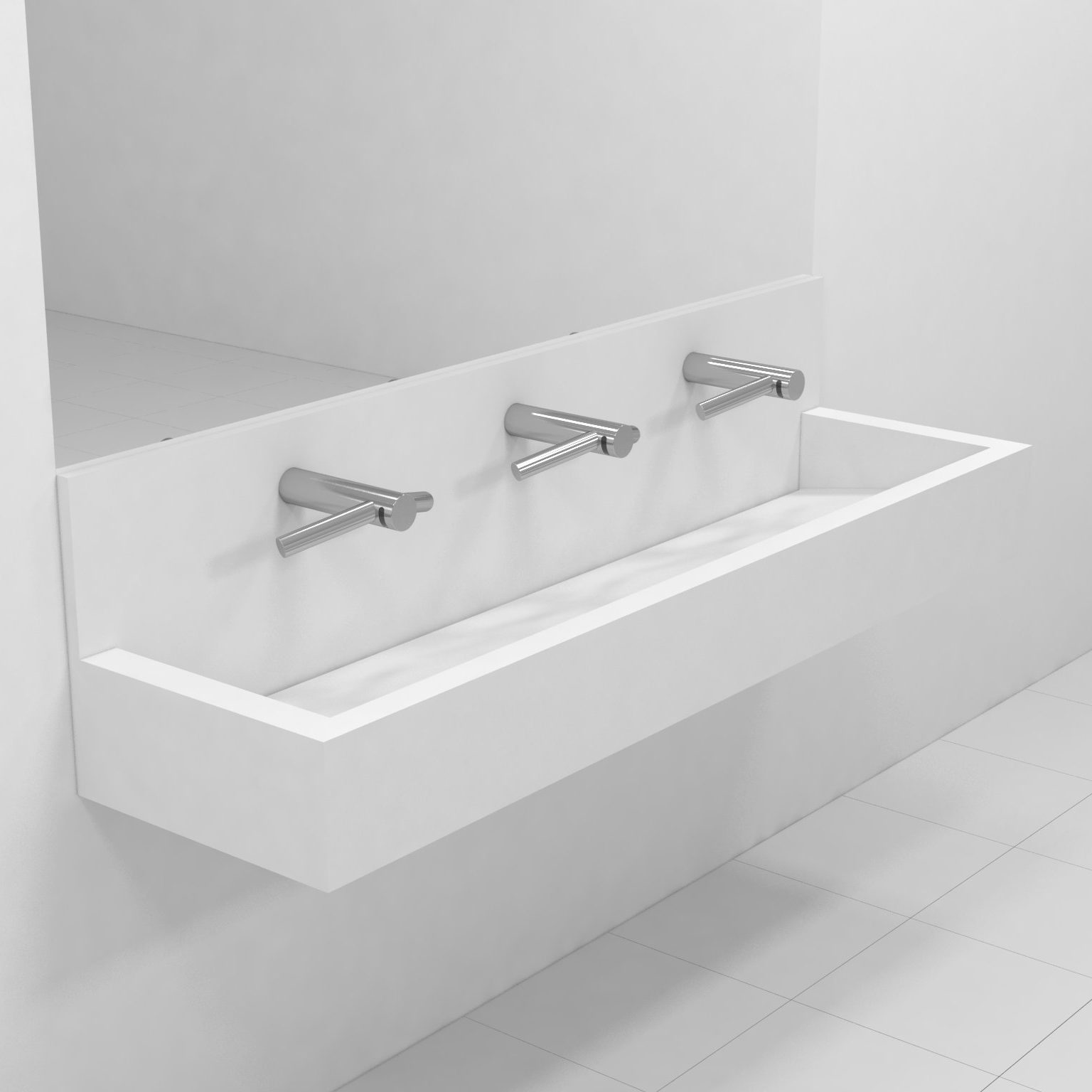

Corian® Washplane 3223^

With this contemporary washplane, visitors can wash and dry their hands at the same location, reducing cross over traffic, enhancing the user experience and helping maintain cleaner, drier floors. Wall-mounted taps further assist in maintaining cleanliness and hygiene. Compact and sleek, this is a versatile washplane option that is suitable for small, busy spaces.

This washplane design is for 3 persons. It is also available for purchase from single person use through to 5 person use.


Installation Wall mount
Tap holes Installer to complete
Waste Concealed waste included
Volume, L 83 Litres
Flow rate, L/min 70 Litres per minute
Colour Availability^ Most Corian® colours - refer to Price and colour guide
Weight 74 kg
Warranty 10 years
Australasian Health Facility Guidelines, Part D - Infection Prevention and Control Compliance Scrub Trough

Washplane 3223 2D PDF and Specification Download
Washplane 3223 Installation Instructions Download
Washplane 3223 2D DWG Download
Washplane 3223 2D DXF Download
Washplane 3223 3DS Download
Washplane 3223 STP Download

View Colour and Price Guide Download

*This is a Suggested Sell Price for the washplane only and is ex gst. ^This washplane is available on an extended lead time.
